Introduction
Pomanique’s ZX-Series three-phase, electronically controlled, vacuum- interrupting distribution automation switch provides reliable, economical switching, sectionalizing, advanced metering, and automation systems for distribution circuits rated up to 38 kV.
The ZX switch combines solid cycloaliphatic- epoxy vacuum interrupters with a reliable, lightweight operating mechanism that utilizes a magnetic actuator to provide a lifetime of trouble- free operation. The solid polymer system does not rely on a gaseous, liquid, or foam dielectric. The ZX switch is highly resistant to ozone, oxygen, moisture, contamination, and ultraviolet light.
Switch operations are programmed in an electronic control with accurate characteristics and a host of advanced features. When system requirements change, program settings are easily altered with no sacrifice of accuracy or consistency.
Pomanique’s reclosers meet all the requirements for outdoor use in accordance with the IEEE C37.60 and IEC 62271-111.
Benefits
Long life and low maintenance
-Magnetic actuators and superior design allow Pomanique’s reclosers to operate for a rated 10,000 full load operations.
-Less moving parts = less maintenance for 25 years.
High reliability
-Pomanique designed a simple, magnetically actuated operating mechanism that could dependably operate with only one moving part.
-Vacuum interrupter technology make ZX recloser with maximum reliability and minimal maintenance.
-Environmentally friendly.
Optimized Measurement
-Reclosers are equipped with current transformer and voltage sensors in each bushings to measure current and voltage, It makes the recloser an ideal device for self-healing loop automation solutions.
Microprocessor based controller
-Controller provides more enhanced functions in protection, monitoring, metering, communication and recorder, and can also support your power distribution system to be more reliable.
Specifications
| 27kV 50/60Hz |
ZX27-630-12-N | ZX27-800-12-N | ZX27-630-16-N | ZX27-800-16-N | ZX27-630-16-H | ZX27-800-16-H | ||
| Rated continuous current | Ir | A | 630 | 800 | 630 | 800 | 630 | 800 |
| Rated duration of short-circuit | Tk | s | 3 | 3 | 3 | 3 | 3 | 3 |
| Rated short-circuit breaking current | Isc | kA | 12.5 | 12.5 | 16 | 16 | 16 | 16 |
| Rated short-circuit making current | Ima | kA | 31.5 | 31.5 | 40 | 40 | 40 | 40 |
| Rated lightning impulse withstand voltage | Up | kV | 125 | 125 | 125 | 125 | 150 | 150 |
| Rated short-duration P.F. withstand voltage | Ud | kV | 60 | 60 | 60 | 60 | 70 | 70 |
| Impedance μΩ between connections | μΩ | 50 | 50 | 50 | 50 | 50 | 50 | |
| Creepage distance, phase-to-earth | mm | 820 | 820 | 820 | 820 | 820 | 820 | |
| Clearance, phase-to-phase | mm | 320 | 320 | 320 | 320 | 320 | 320 | |
| Minimum clearance, phase-to-earth | mm | 270 | 270 | 270 | 270 | 350 | 350 | |
| Weight | kg | 140 | 140 | 140 | 140 | 150 | 150 | |
| Line charging current | A | 5 | 5 | 5 | 5 | 5 | 5 | |
| Cable charging current | A | 25 | 25 | 25 | 25 | 25 | 25 | |
| Max. interrupting time / max. closing time | ms | 60/60 | 60/60 | 60/60 | 60/60 | 60/60 | 60/60 | |
Dimension drawings
|
A |
B |
C |
D |
E |
F |
||
|
15.5kV |
mm |
460 |
380 |
850 |
508 |
270 |
970 |
|
27kV |
mm |
460 |
380 |
850 |
508 |
270 |
970 |
|
38kV |
mm |
512 |
380 |
970 |
590 |
270 |
970 |
|

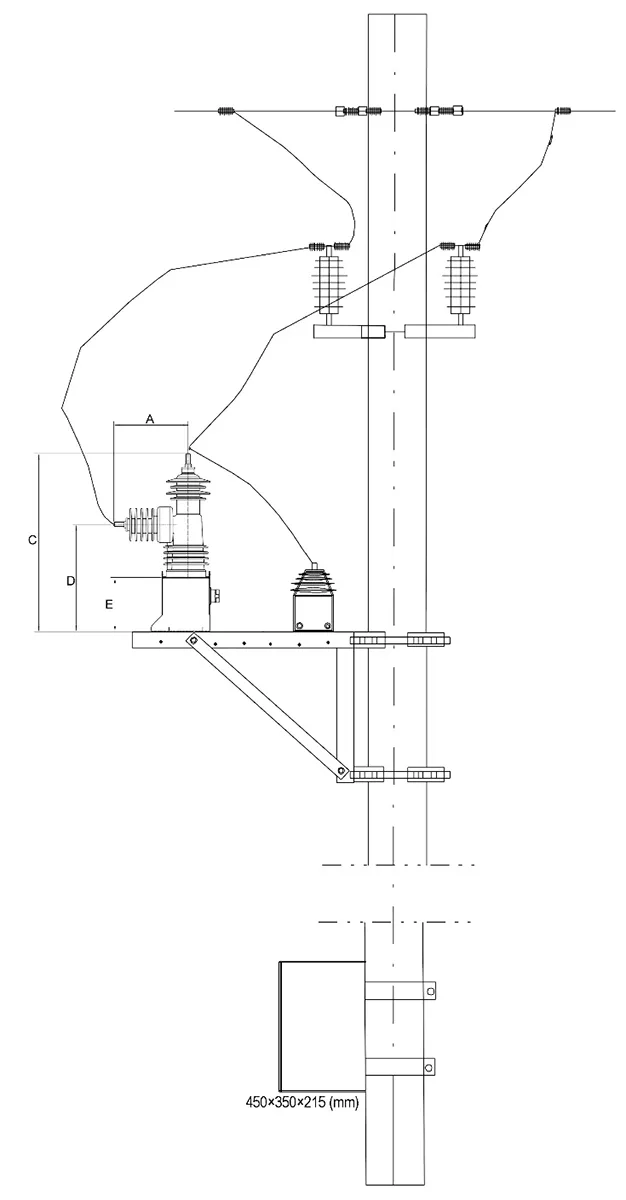

Pole mount |

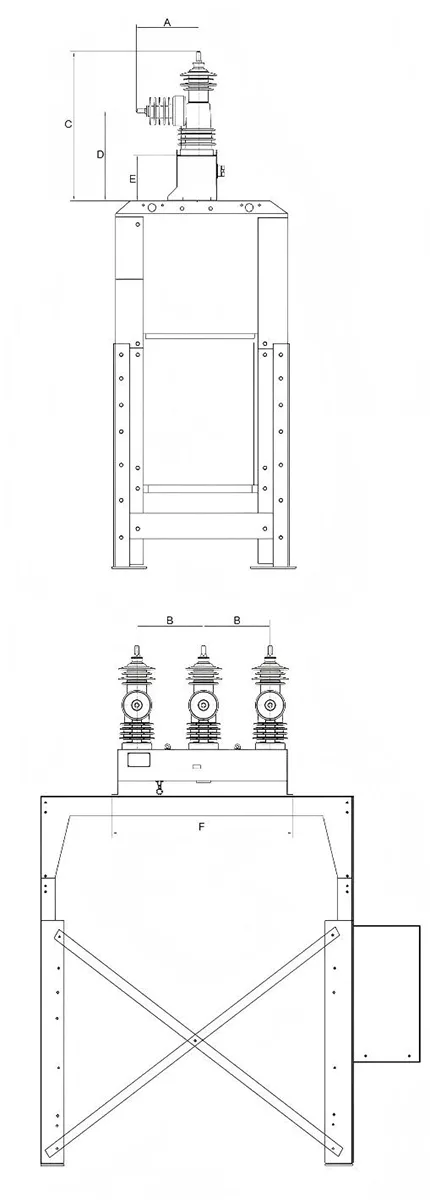

Substation mount |
|
|
|
